Groundwater Exploration Using Geophysical Methods: Comprehensive Technical Framework for Indonesia

Reading Time: 48 minutes

Executive Summary

Groundwater exploration using geophysical methods provides cost-effective, non-invasive approach for locating and characterizing aquifers prior to expensive drilling programs, enabling systematic investigation of subsurface conditions across large areas while minimizing environmental disturbance and capital risk. Geophysical techniques measure physical property variations in subsurface materials including electrical resistivity, seismic velocity, electromagnetic conductivity, density, magnetic susceptibility, and nuclear magnetic resonance response, with interpretation translating these measurements into hydrogeological information about aquifer location, geometry, hydraulic properties, and water quality indicators. Multiple geophysical methods exist offering complementary capabilities suited to different geological settings, investigation objectives, budget constraints, and technical requirements, with selection depending on site-specific conditions and project goals.¹

Indonesian groundwater exploration faces diverse geological challenges spanning porous sedimentary aquifers in coastal plains and river valleys, fractured volcanic rock aquifers throughout archipelago, weathered crystalline basement in hilly and mountainous regions, and karst limestone aquifers in Java, Sulawesi, and eastern islands. Each geological setting presents distinct characteristics affecting geophysical method performance, with sedimentary aquifers typically amenable to resistivity and electromagnetic methods detecting variations in pore water salinity and saturation, while fractured rock aquifers require integrated approaches combining electrical methods for fracture zone detection with seismic techniques mapping geological structure and magnetic methods identifying rock type variations. Tropical weathering produces thick soil and saprolite covers masking bedrock conditions, requiring careful survey design and interpretation accounting for complex resistivity profiles where weathered zones may contain more groundwater than underlying fresh rock.

This comprehensive technical analysis examines geophysical methods applicable to groundwater exploration in Indonesian contexts, covering electrical resistivity methods including vertical electrical sounding and electrical resistivity tomography, seismic refraction and reflection techniques, electromagnetic methods spanning frequency domain and time domain systems, ground-penetrating radar for shallow investigations, magnetic resonance sounding for direct water detection, and supporting methods including gravity and magnetic surveys. Discussion provides theoretical foundations, field procedures, data processing and interpretation, cost-benefit analysis comparing methods, success rate factors, integration strategies, quality assurance requirements, and emerging technologies advancing groundwater geophysics capabilities. Real-world case studies demonstrate method applications across different geological settings with quantitative analysis of costs, timelines, and outcomes supporting informed decision-making for groundwater exploration programs.

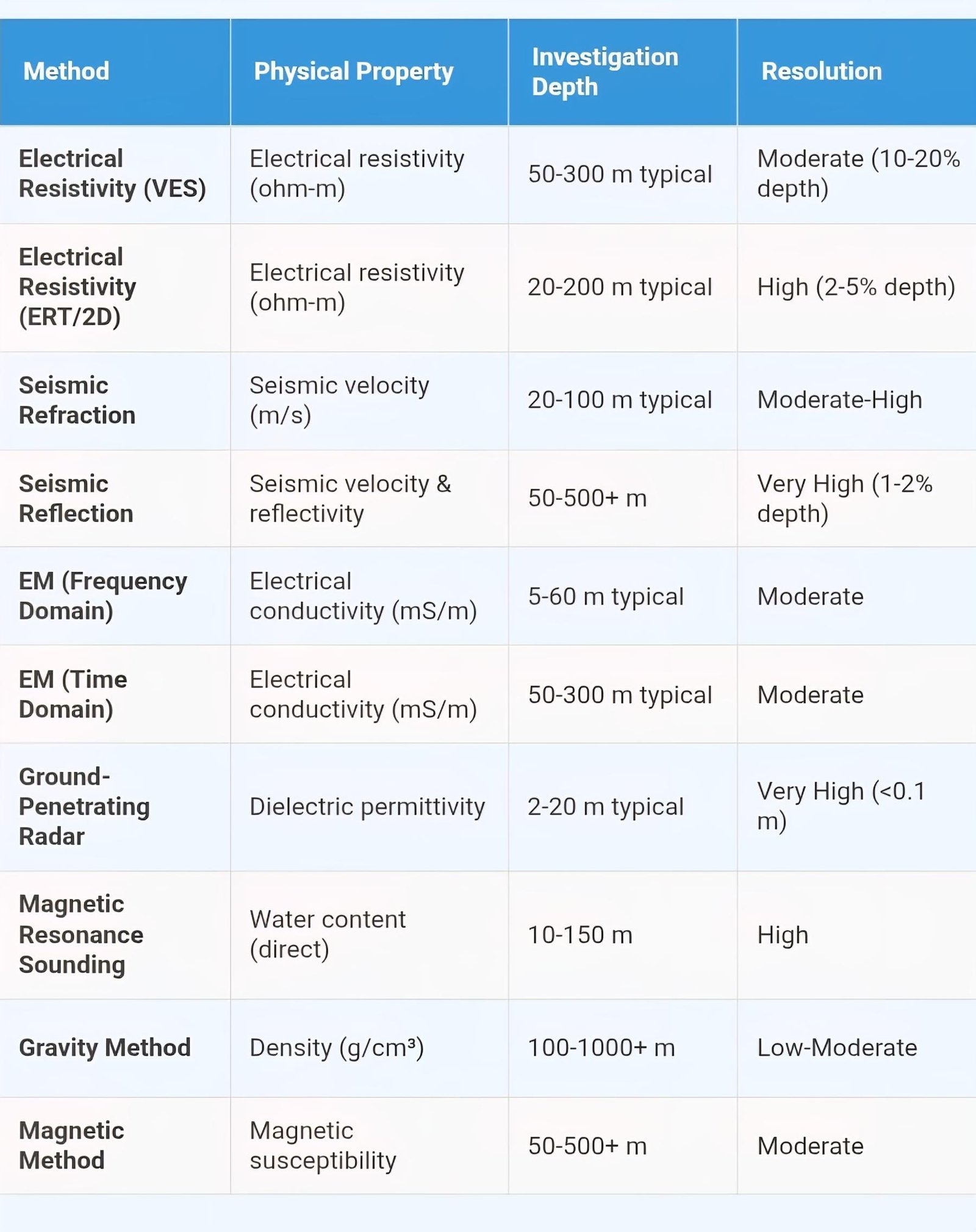

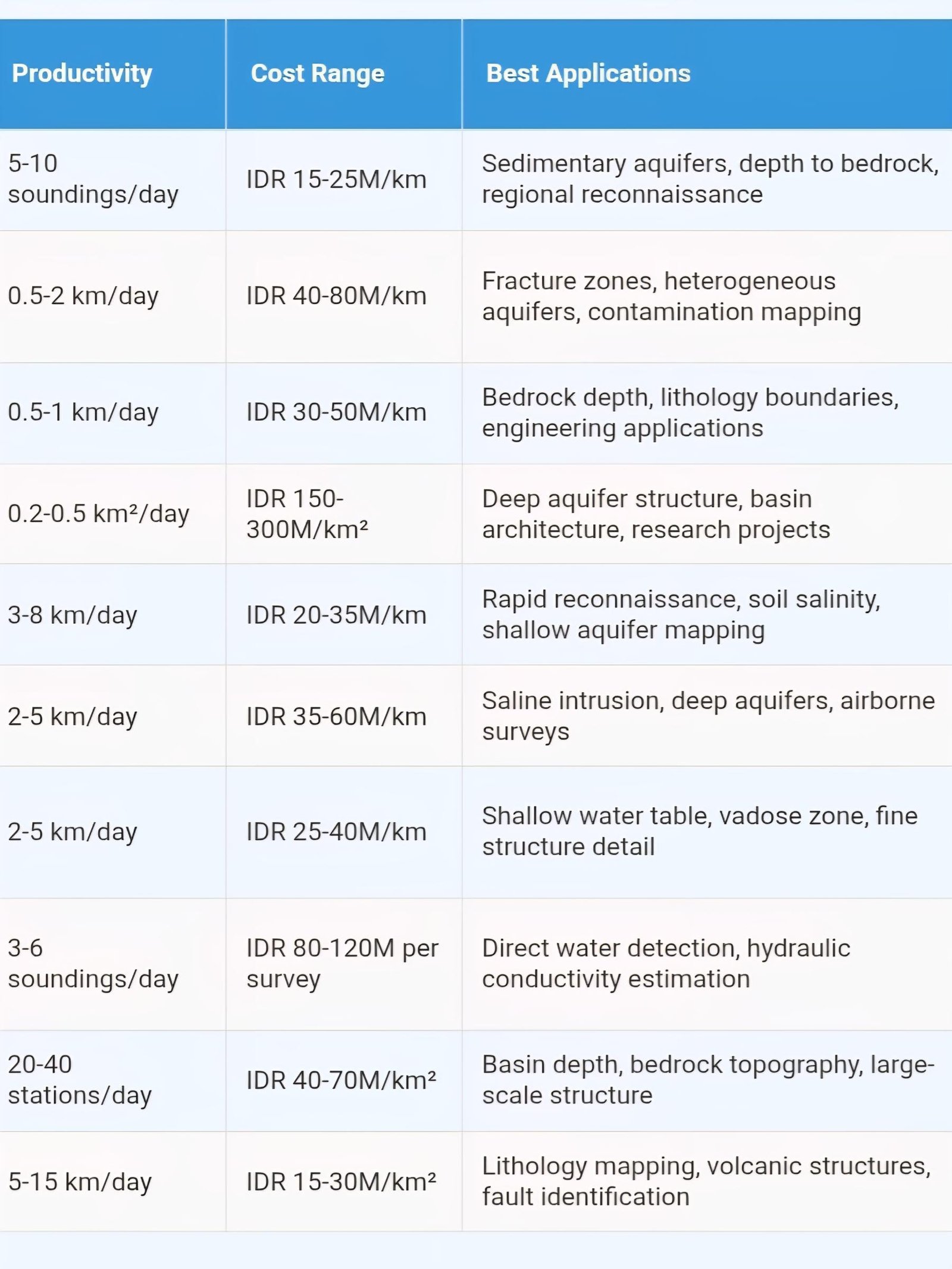

Practical decision frameworks guide method selection based on investigation objectives, geological conditions, site access constraints, budget availability, and required information depth and resolution. Comparison matrices evaluate methods across dimensions including investigation depth capability, resolution, productivity, capital and operating costs, skill requirements, and geological setting suitability. Cost-benefit analysis quantifies economic implications of geophysical exploration versus direct drilling approaches, demonstrating that systematic geophysical surveys typically reduce total exploration costs by 30-50% through improved drilling success rates and reduced number of unproductive boreholes, while providing comprehensive understanding of subsurface hydrogeology impossible to achieve through drilling alone given practical limits on borehole density.

Electrical Resistivity Methods for Groundwater Exploration

Electrical resistivity techniques represent most widely applied geophysical methods for groundwater exploration, accounting for approximately 70% of groundwater-focused geophysical surveys globally due to strong correlation between electrical resistivity and groundwater-related parameters including saturation, salinity, clay content, and porosity. Method measures subsurface electrical resistivity by injecting direct current through electrode pairs and measuring resulting potential difference at other electrode pairs, with apparent resistivity calculated from current, voltage, and geometric factor depending on electrode configuration. Resistivity varies dramatically across geological materials ranging from very low values (1-10 ohm-meters) for clay-rich sediments and saline groundwater, through moderate values (10-100 ohm-meters) typical of freshwater-saturated sand and gravel, to high values (100-10,000+ ohm-meters) characterizing fresh bedrock and unsaturated materials, enabling differentiation of aquifer materials from confining units and identification of water-bearing zones.¹

Two primary electrical resistivity approaches serve groundwater exploration with distinct capabilities and applications. Vertical Electrical Sounding (VES) investigates variation of resistivity with depth at specific locations through progressively expanding electrode spacing, providing one-dimensional resistivity models showing layered structure beneath each sounding point. VES proves economical for reconnaissance surveys covering large areas with measurements at discrete stations, suitable when subsurface structure shows primarily horizontal layering typical of sedimentary sequences. Electrical Resistivity Tomography (ERT) also called resistivity imaging deploys many electrodes along profiles or in 2D/3D arrays, systematically measuring resistivity for numerous electrode combinations and inverting data to produce detailed two-dimensional cross-sections or three-dimensional volumes showing lateral and vertical resistivity variations. ERT provides superior resolution of complex geological structures including faults, fracture zones, channels, and heterogeneous aquifers justifying higher costs through detailed characterization enabling optimal well placement.

Field procedures for electrical resistivity surveys require systematic approach ensuring data quality and safety. Site reconnaissance identifies suitable survey lines avoiding metallic infrastructure including pipelines, power lines, buried cables, and fences causing electromagnetic noise and current leakage. Electrode contact resistance must remain below 10 kilohms through wetting contact points or using bentonite mud in dry soils, with contact resistance measured and recorded. Survey lines should extend 1.5-2 times desired investigation depth beyond area of interest ensuring adequate data for inversion. Quality control includes reciprocal measurements where current and potential electrode pairs are swapped, with differences below 5% indicating good data quality, and repeated measurements verifying consistency. Modern automated systems perform these checks automatically flagging suspect data for operator attention.

Indonesian applications of electrical resistivity methods prove particularly effective for sedimentary coastal aquifers, alluvial deposits, and volcanic ash sequences where lateral continuity and porosity-controlled resistivity enable reliable interpretation. Challenges include thick weathered zones producing complex resistivity profiles, high soil moisture causing low contact resistance but also low signal penetration, and cultural noise from power infrastructure in urbanized areas requiring careful survey design and processing. Success rates for VES-guided drilling in Indonesian sedimentary aquifers typically exceed 75% when surveys adequately characterize subsurface structure and interpretation incorporates local geological knowledge, compared to 30-40% success for drilling without geophysical guidance based on surface geology alone.

Seismic Methods for Aquifer Characterization

Seismic methods detect variations in subsurface seismic wave velocity related to rock type, density, porosity, saturation, and mechanical properties, providing complementary information to electrical methods about aquifer geometry, lithology, and structure. Seismic refraction measures first arrival times of seismic waves traveling through subsurface layers, with interpretation determining velocity and thickness of layers based on travel time versus distance relationships. Seismic reflection analyzes reflected waves from subsurface boundaries, producing detailed cross-sections analogous to radar or ultrasound imaging showing geological structure and stratigraphy. Seismic velocity increases with density and consolidation, ranging from 300-800 m/s in unconsolidated sediments through 1,500-3,000 m/s in saturated unconsolidated materials to 3,000-6,000+ m/s in consolidated rock, with water saturation typically increasing velocity 20-50% compared to dry conditions enabling detection of water table and saturated zones.

Seismic refraction serves groundwater applications primarily for determining depth to bedrock or competent layers, mapping geological structure including faults and fracture zones, and characterizing overburden thickness and properties above target aquifers. Method requires velocity increase with depth creating refracting interfaces, limiting applications where velocity inversions exist such as low-velocity weathered zones beneath higher-velocity unweathered material. Seismic reflection provides superior resolution and detail for deeper targets, though higher costs and processing complexity limit applications primarily to major projects or research studies. Both methods require energy source generating seismic waves (sledgehammer, weight drop, explosive charges, or mechanical vibrators), array of geophones detecting ground motion, and recording system digitizing signals for processing and interpretation.

Seismic methods prove particularly valuable in Indonesian volcanic terrains for mapping weathered zone thickness overlying fresh rock, identifying permeable volcanic ash layers within lava sequences, detecting fault zones controlling groundwater flow in fractured rock aquifers, and characterizing alluvial valley fill geometry in intermontane basins. Seismic velocity contrasts typically strong in volcanic settings where fresh lava flows (3,000-4,000 m/s) alternate with porous volcanic ash (1,200-2,000 m/s) and weathered zones (800-1,500 m/s), enabling clear layer differentiation. Integration with electrical resistivity provides powerful combination where seismic defines geometric structure and lithology while resistivity indicates water content and salinity, reducing interpretation ambiguity inherent in either method alone.

Electromagnetic Methods for Groundwater Applications

Electromagnetic (EM) methods measure subsurface electrical conductivity through electromagnetic induction without requiring direct ground contact, offering faster data acquisition than electrode-based resistivity methods while providing complementary information about aquifer characteristics. EM techniques use transmitter coil generating time-varying primary magnetic field that induces electrical currents in conductive subsurface materials, which generate secondary magnetic fields detected by receiver coil with amplitude and phase relationships indicating subsurface conductivity distribution. Methods divide into frequency-domain systems transmitting continuous sinusoidal signals at one or more frequencies, and time-domain systems transmitting transient pulses and measuring decay of induced currents over time, with each approach offering distinct capabilities for groundwater exploration.

Frequency-domain electromagnetic (FDEM) systems operate at fixed frequencies typically ranging from 400 Hz to 100 kHz with multiple coil configurations providing investigation depths from few meters to approximately 60 meters depending on coil separation, frequency, and ground conductivity. Commonly used in reconnaissance mode, FDEM systems enable rapid data collection walking along profiles while continuously recording measurements at meter-scale intervals, covering 3-8 kilometers per day compared to 0.5-2 kilometers for electrical resistivity. Applications include rapid mapping of shallow aquifers, soil salinity surveys for agricultural planning, groundwater contamination delineation, and regional hydrogeological mapping identifying prospective zones for detailed investigation. Time-domain electromagnetic (TDEM) systems transmit high-power current pulses through large loop or grounded wire and measure induced voltage decay in receiver coil, with late-time measurements sampling deeper subsurface enabling investigation to 200-300 meters or more in resistive environments. TDEM proves effective for mapping saline groundwater interfaces, deep aquifer characterization, and mineral exploration though higher equipment costs and slower data acquisition than FDEM limit applications primarily to projects justifying premium capabilities.

Indonesian coastal aquifer investigations benefit substantially from electromagnetic methods for mapping freshwater-saltwater interfaces, identifying aquifer extent and thickness beneath tidal zones, and monitoring temporal changes in salinity distribution. FDEM surveys provide cost-effective reconnaissance identifying areas suitable for groundwater development versus those affected by seawater intrusion, while TDEM soundings characterize deep freshwater resources beneath thin saline surface layers common in coastal settings. Airborne electromagnetic surveys, though expensive requiring mobilization of aircraft and specialized equipment, enable regional-scale aquifer mapping across difficult terrain including swamps, dense forests, and remote islands where ground-based surveys prove logistically challenging and prohibitively expensive. Several successful AEM projects mapped groundwater resources across extensive areas in Kalimantan and Papua, demonstrating viability for major water supply investigations serving planned industrial developments or municipal expansions.

Advanced and Emerging Technologies

Recent technological advances expand geophysical groundwater exploration capabilities through improved resolution, deeper investigation, direct water detection, and reduced costs enabling more comprehensive aquifer characterization. Magnetic Resonance Sounding (MRS) also called Surface Nuclear Magnetic Resonance represents revolutionary technology providing direct, non-invasive measurement of subsurface water content and hydraulic properties without requiring boreholes. MRS operates by transmitting oscillating magnetic field at Larmor frequency specific to hydrogen nuclei in water molecules, exciting nuclear magnetic resonance in subsurface water, then measuring amplitude and relaxation time of resulting electromagnetic signal encoding information about water quantity, pore size distribution, and hydraulic conductivity. Unlike other geophysical methods measuring proxy properties requiring hydrogeological interpretation, MRS directly detects water enabling unambiguous identification of aquifers while estimating hydraulic parameters critical for water supply design.

MRS technology addresses fundamental limitation of conventional geophysics where multiple geological scenarios may produce similar geophysical signatures, creating interpretation ambiguity particularly in complex geological settings. Direct water detection eliminates uncertainty about whether conductive zones detected by electrical methods represent water-saturated sand, clay, or other lithologies, while hydraulic conductivity estimates reduce need for extensive aquifer testing providing preliminary design parameters before expensive drilling programs commence. However, MRS faces practical challenges including high equipment costs (USD 150,000-300,000 systems), electromagnetic noise sensitivity requiring measurements in areas away from power infrastructure, relatively low productivity (3-6 soundings per day), and investigation depth limitations (typically 10-150 meters depending on signal strength and noise levels). Despite limitations, MRS proves valuable for high-priority investigations where direct water information justifies premium costs, particularly in geologically complex areas where conventional methods produce ambiguous results.

Multi-electrode resistivity imaging systems represent significant practical advance improving productivity and data quality through automated measurement sequences, distributed switching reducing cable lengths and setup time, wireless control enabling remote operation, and real-time quality control flagging suspect data immediately rather than discovering problems during post-processing. These systems reduce field crew size requirements from 3-4 personnel to 2 people while increasing daily productivity by factor of 3-5, substantially improving project economics despite higher equipment capital costs. Three-dimensional resistivity imaging capabilities enable true volumetric aquifer characterization rather than interpolating between 2D profiles, providing superior understanding of complex three-dimensional geological structures including fault zones, paleochannels, and heterogeneous volcanic sequences common throughout Indonesia.

Integrated inversion approaches simultaneously process multiple geophysical datasets constraining interpretation and reducing ambiguity inherent in single-method inversions. Joint inversion of electrical resistivity and seismic data provides powerful combination where seismic defines geometric structure while resistivity indicates water content and salinity, with joint framework ensuring consistency between independent measurements while resolving features neither method alone constrains adequately. Petrophysical relationships linking geophysical properties to hydrogeological parameters enable quantitative estimation of porosity, hydraulic conductivity, and other properties from calibrated geophysical data, transforming geophysics from qualitative aquifer delineation to quantitative hydrogeological characterization supporting groundwater modeling and water supply design. Machine learning algorithms trained on extensive datasets increasingly assist interpretation through pattern recognition, anomaly detection, and automated classification, though human expertise remains essential validating results and incorporating geological understanding.

Cost-Benefit Analysis and Economic Justification

Economic analysis of geophysical exploration versus alternative approaches demonstrates substantial value proposition for systematic surveys prior to drilling programs, particularly for projects requiring multiple boreholes or targeting uncertain aquifers where drilling risks and costs prove significant. Direct drilling without geophysical guidance relies on surface geological mapping, existing well data, and local hydrogeological knowledge producing success rates typically 30-45% in favorable geological settings but dropping below 20% in complex geology where surface features poorly indicate subsurface aquifer conditions. Failed boreholes represent sunk costs providing minimal information value beyond confirming absence of aquifer at specific location, while successful wells may encounter unexpected conditions including inadequate yields, poor water quality, or excessive depths requiring additional drilling elsewhere. Geophysical surveys reduce these risks through systematic subsurface characterization identifying optimal drilling locations and providing advance warning of challenging conditions enabling contingency planning.

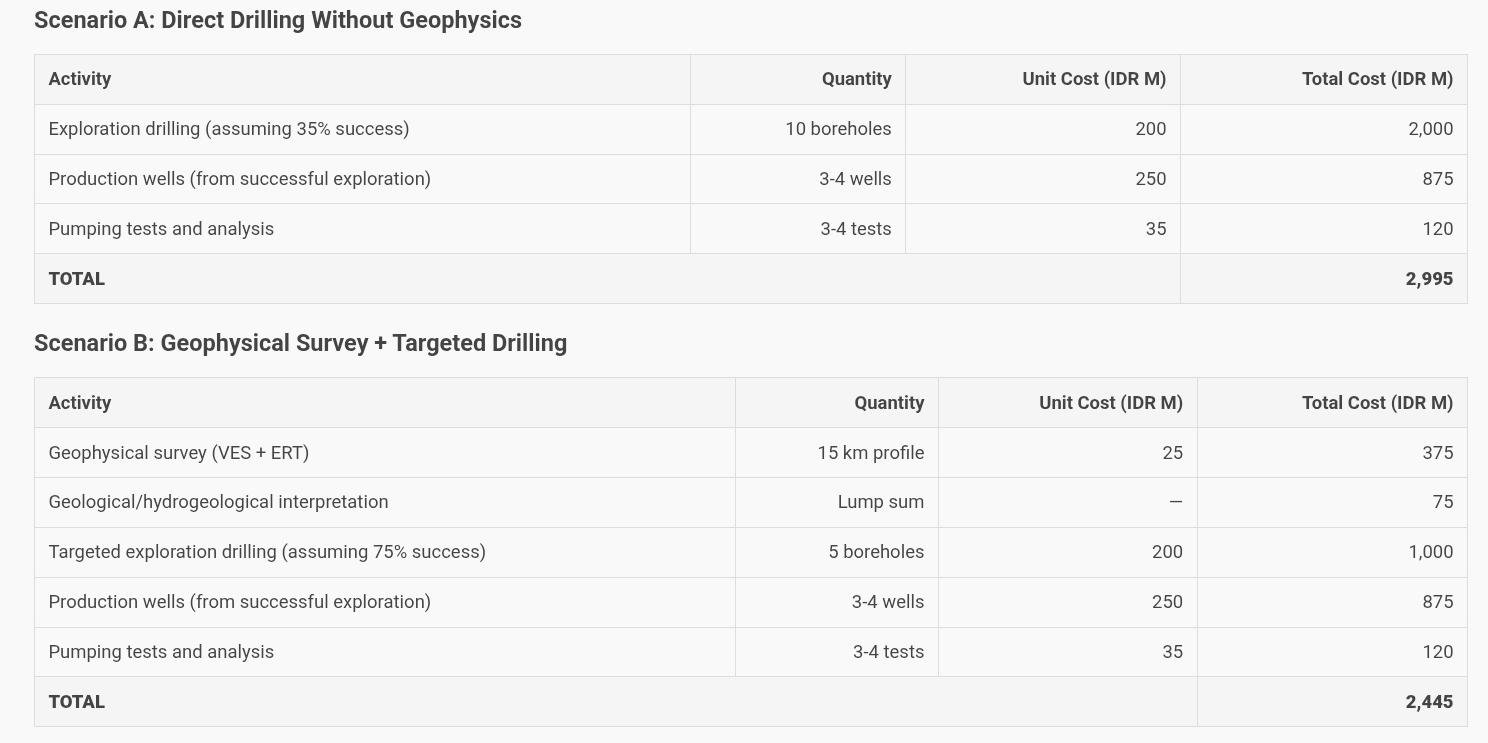

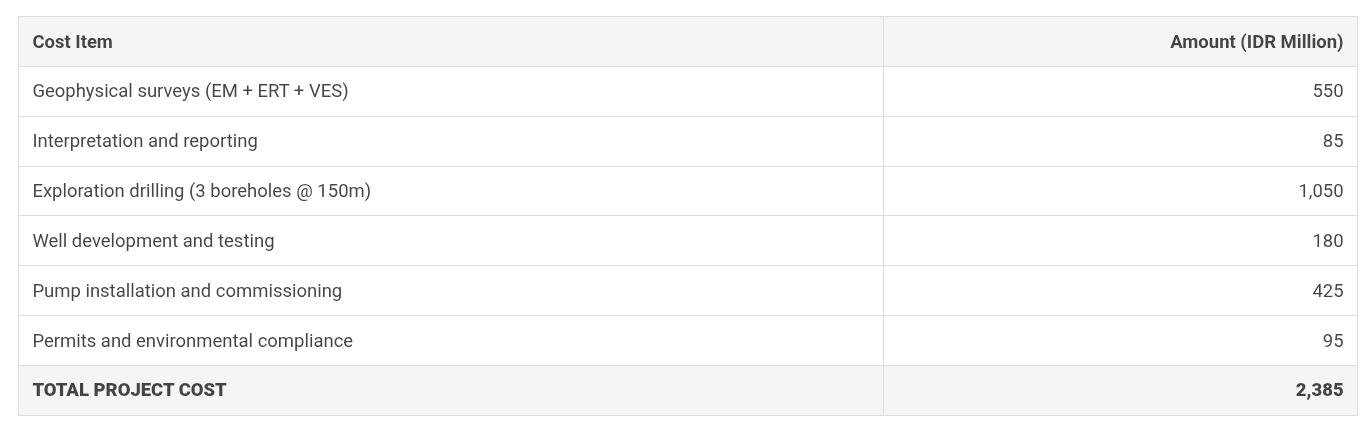

Comparative cost analysis for typical groundwater development project targeting 50-100 m³/hour production capacity from 3-5 production wells illustrates geophysical value proposition. Direct drilling approach might drill 8-12 exploration boreholes at IDR 150-250 million each (depending on depth and drilling conditions) seeking productive zones, with 30-40% success rate producing 3-5 successful wells at total exploration cost of IDR 1.2-3.0 billion including failed holes. Geophysical approach invests IDR 200-500 million in comprehensive surveys (depending on method selection and area size) followed by targeted drilling of 4-6 boreholes at prime locations identified through geophysical interpretation, achieving 70-80% success rate producing required wells at total cost of IDR 800-1.8 billion including geophysics and drilling. Net savings of 25-40% result from improved drilling success reducing wasted expenditure on unproductive holes, while additional benefits include enhanced understanding of aquifer geometry and properties supporting optimal well design, pumping test interpretation, and water supply sustainability assessment.

Additional economic benefits beyond direct cost savings include reduced project timeline through systematic planning and targeted drilling avoiding iterative trial-and-error approaches, lower environmental and social impacts from minimized land disturbance and reduced drilling activities, enhanced hydrogeological understanding enabling optimal well design and pump selection, better aquifer management through comprehensive characterization supporting sustainable yield determination, and reduced long-term risks from unexpected conditions including insufficient capacity, water quality problems, or aquifer depletion. These qualitative benefits prove difficult quantifying precisely but represent substantial value particularly for major water supply projects serving municipalities, industries, or commercial developments where water security and long-term sustainability constitute critical success factors justifying premium for thorough planning and characterization.

Success Rates and Performance Factors

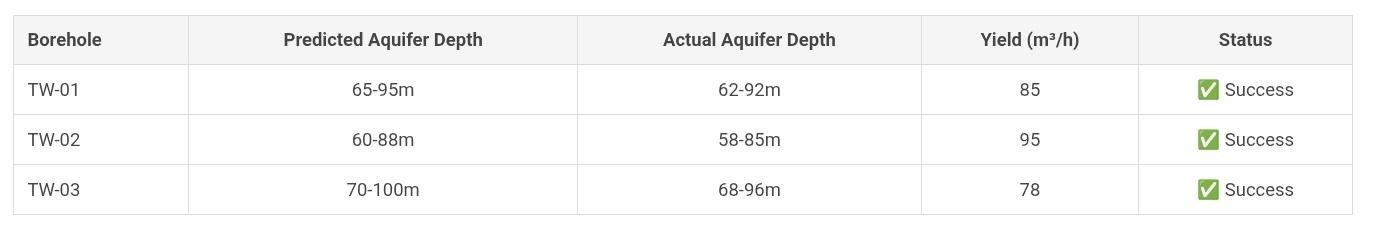

Geophysical survey success rates for groundwater exploration depend heavily on multiple factors including geological complexity, method selection appropriateness, survey design quality, data acquisition procedures, interpretation expertise, and integration with hydrogeological analysis. Well-designed and properly executed surveys in favorable geological settings achieve success rates of 75-85% defining productive aquifer zones and guiding drilling to successful wells, while poorly designed surveys, inappropriate method selection, or inadequate interpretation produce results no better than random drilling despite incurring survey costs. Understanding factors controlling success enables realistic expectations, appropriate project planning, and quality assurance measures maximizing probability of positive outcomes justifying geophysical investment.

Geological favorability represents most critical success factor, with sedimentary aquifers in relatively simple geological settings amenable to high success rates through straightforward application of standard methods, while fractured rock aquifers in complex geological structures present greater challenges requiring integrated multi-method approaches and sophisticated interpretation. Targets showing strong geophysical contrast with surrounding materials enable confident identification, such as freshwater sand aquifers in clay-rich sequences showing high resistivity, while subtle contrasts including slightly fractured rock versus intact rock require careful survey design and interpretation. Investigation depth relative to target depth affects success, with shallow targets within several tens of meters generally more reliably characterized than deep targets at 200-300 meters requiring specialized methods and favorable conditions. Site access and cultural noise constraints limit survey design options and data quality in urban or developed areas, potentially degrading success compared to rural sites enabling optimal survey implementation.

Survey design quality profoundly influences success through appropriate method selection matching investigation objectives and geological conditions, adequate survey density providing sufficient data for reliable interpretation, suitable electrode/geophone spacing optimizing investigation depth and resolution tradeoff, and profile orientation perpendicular to geological strike maximizing structure detectability. Indonesian practitioners should avoid common pitfalls including undersized surveys with insufficient coverage, inappropriate methods for geological conditions, excessive electrode spacing sacrificing resolution, parallel profiles missing key structures, and inadequate quality control procedures failing to detect data problems before processing. International best practices documented in cited references provide detailed guidance for survey planning, execution, and interpretation supporting high-quality results.

Interpretation expertise represents critical yet often underestimated success factor, with experienced hydrogeophysicists producing substantially superior results compared to inexperienced practitioners through recognition of data artifacts, awareness of interpretation pitfalls, incorporation of geological constraints, realistic assessment of alternatives, and communication of uncertainty ranges rather than false precision. Organizations conducting geophysical exploration should invest in staff training, engage qualified consultants for major projects, seek peer review for critical interpretations, and maintain realistic expectations about method capabilities and limitations. Promising results require verification drilling before committing to full production well development, with validation confirming predictions building confidence while unexpected results prompting reassessment and potential supplementary investigations.

Strategic Recommendations and Conclusions

Geophysical methods provide essential tools for systematic, cost-effective groundwater exploration in Indonesian geological settings, enabling efficient aquifer characterization across large areas prior to expensive drilling programs while substantially improving drilling success rates and reducing overall project costs and risks. Organizations developing groundwater resources should adopt systematic geophysical approach rather than ad-hoc direct drilling, particularly for projects requiring multiple production wells, investigating uncertain aquifer conditions, or operating in challenging geological environments where surface indicators poorly predict subsurface aquifer occurrence. Investment in quality geophysical surveys typically represents 20-30% of total exploration and well development costs while reducing overall expenditure by 25-40% through improved drilling efficiency, providing clear economic justification beyond qualitative benefits of enhanced hydrogeological understanding.

Method selection should follow systematic decision framework considering investigation objectives, geological setting, target depth and resolution requirements, site access constraints, budget availability, and required information types. Electrical resistivity methods serve as workhorses for most Indonesian applications given strong correlation between resistivity and groundwater parameters combined with cost-effectiveness and broad applicability, though specific situations benefit from complementary or alternative methods including seismic for lithology and structure, electromagnetic for saline environments or deep targets, ground-penetrating radar for shallow detail, or magnetic resonance for direct water detection. Multi-method approaches combining complementary techniques substantially reduce interpretation ambiguity while providing comprehensive characterization, justifying additional costs through reduced drilling risk particularly for major projects or complex geology.

Quality assurance proves critical for successful outcomes, requiring proper equipment selection and maintenance, systematic field procedures following established protocols, experienced personnel supervising all phases, rigorous data quality control identifying and correcting problems, realistic interpretation acknowledging uncertainty and alternative scenarios, integration with geological and hydrogeological knowledge, and validation drilling confirming predictions before committing to production well development. Organizations should engage qualified contractors with demonstrated groundwater experience, review detailed proposals assessing methodology appropriateness, check references from similar projects, and maintain realistic expectations about method capabilities and limitations while demanding professional deliverables supporting informed decision-making.

Future technology developments continue enhancing geophysical groundwater exploration through improved instrumentation providing higher resolution and deeper investigation, automated data acquisition increasing productivity and reducing costs, advanced processing and inversion algorithms extracting maximum information from field measurements, integration frameworks combining multiple datasets into consistent models, and quantitative interpretation methods translating geophysical properties to hydrogeological parameters. Indonesian groundwater sector should embrace these advances through professional training and development, investment in modern equipment and software, collaboration between geophysicists and hydrogeologists, and systematic documentation of case studies building experience base. Geophysical exploration combined with sound hydrogeological principles enables sustainable groundwater resource development supporting Indonesia's economic growth, water security, and environmental protection objectives through efficient, informed water resource management.

```
